Stratigraphy¶

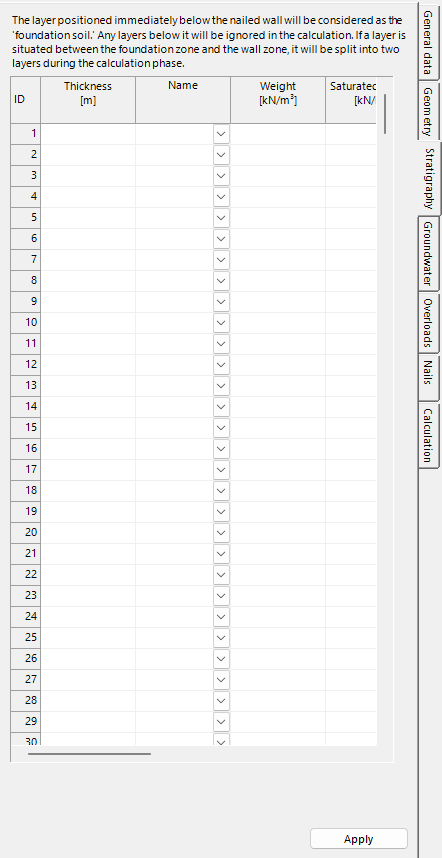

The Stratigraphy panel is represented below.
In the corresponding table, it is necessary to enter the information required to define the stratigraphy. The layers, numbered progressively starting from ID = 1, are assigned from top to bottom. For each layer, it is necessary to assign values for:
- thickness
- dry unit weight
- saturated unit weight
- soil shear strength angle
- cohesion
- wall-soil friction angle
- soil-nail interaction coefficient For each layer, you can also assign a color and a description.
