Stress diagrams

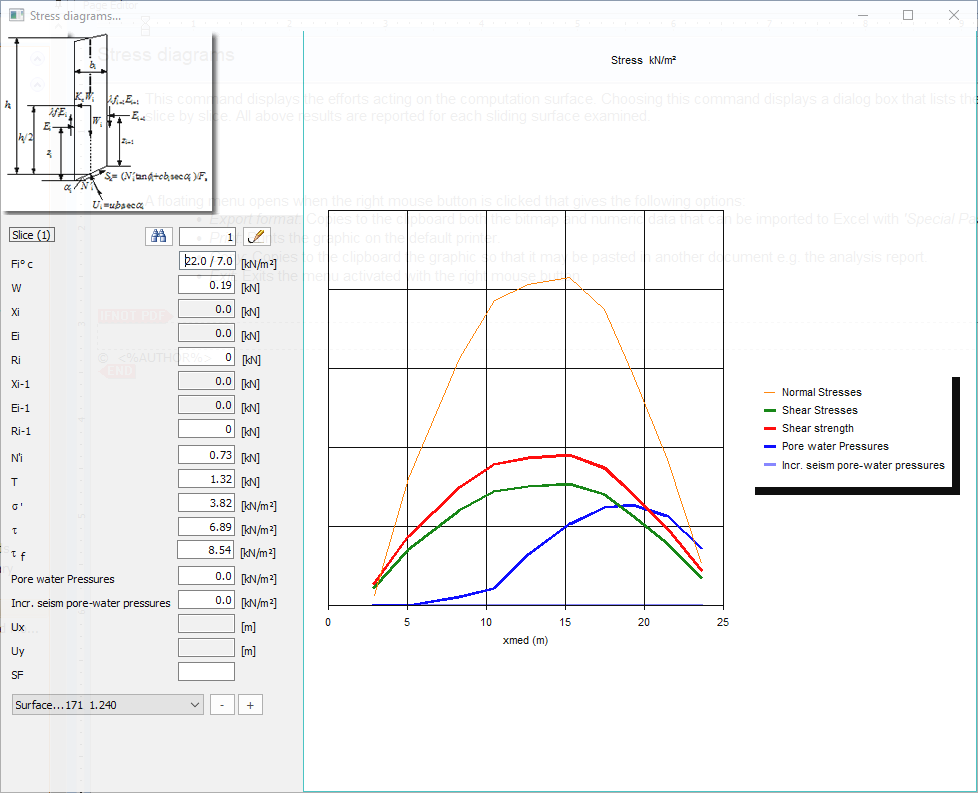

This command displays the efforts acting on the computation surface. Choosing this command displays a dialog box that lists the trend of normal and shear stresses along the surface and, on the left side of the window, all efforts slice by slice. All above results are reported for each sliding surface examined.

A floating menu opens when the right mouse button is clicked that gives the following options:
